1. 20px ultra fine writing, and 2 mm diameter recognizable with the precision of 1 mm.
2.Built-in Wi-Fi realizes miracasting without any cable connection.
3.Built-in interactive whiteboard system allows annotating and sharing by QR code.
4.Looping-out display available.
5.Various audio and video interfaces for device access.
6.Built-in network switch chip saves a network switch.
SPECIFICATION
Display Parameters
- Intel UHD Graphic, support H.265 and 4K resolution.
- Support M.2 nvme system disk quick start.
- Support 3 USB 3.0 ports, 3 USB2.0 ports, 1 HDMI port, 1 DP interface，1 Type-C port.
- Support dual channel memory.
- Support Wi-Fi IEEE 802.11 a/b/g/n/ac.
Built-inSystem
- Processor = Intel core i5/i7
- Generation = 10th. or Above
- Platform Architecture = Intel
- Graphics = Intel UHD Graphics 630
- Memory = 8G DDR4
- Storage = SSD-256+ HDD-1 TB
- NIC = Integrated 10/100/1000M Adaption

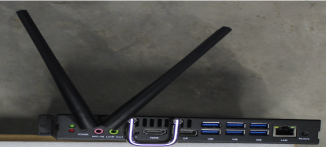

Interface
- Network Interface = RJ45×1
- Data Transmission Interface = Bluetooth 5.0
- Antenna = 2
- Video Output = HDMIx1, DPx1, Mini HDMIx1
- USB 3.0 = 5
- USB 2.0 = 1
Power
- Input Voltage = 19V-5A
- Max. Consumption = 60W
- Standby Consumption = 0.5W
Working Environment
- Storage Temperature = -20°C - 60°C
- Storage Humidity = 10%-90%
- Working Temperature = 0°C - 40°C
- Working Humidity = 0%-90%
General
- Color = Black /Gray
- Product Dimensions (W × H × D) = 180×195×30mm
- Net Weight = 1.24kg Approx.
- Ultra - Narrow Profile 13.3 mm frame.
- The High - Precision infrared 20- point touch.
- 4k UHD 178 Degree.
- Support Pen & Finger Touch.

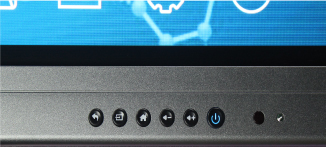

- Reserved for the OPS Interface.
- HDMI Output, Antenna hidden inside.
- Easy Switching between Dual System.
- Standard Anti - Glare and Tempered Glass.
- Support Wireless Screen Share.
- Smart Panel Software include.
- In Built WIFI and Bluetooth in Android.
- Scan QR Code to connect mobile phone.
